Changing the Layer Display Style

This section is valid for all product flavors.

To change the display style for a layer on the map:

1. Double click on the pictogram for the selected layer The Style dialog box opens.
2. In the Style dialog box, choose the geometry type appropriate for a given layer (for example, the area style as shown in the picture below), and select the style type to be defined.
3. Define the style using the available controls, such as Width, Translucency, or Color.



4. After defining the style properties, click Apply.

To restore the default style for the selected layer, right click on the entry for the layer in Map Content and select Restore default style.

The functionality for changing the style for displayed layers is accessible only for layers that come from services which support style changing.

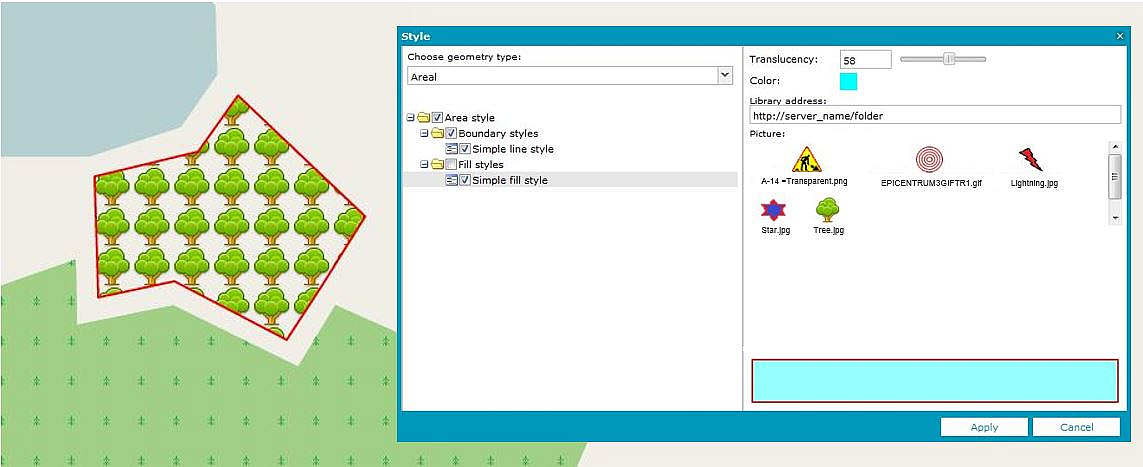

Defining a pattern fill:

For geometries of the area type, you can define a pattern fill apart from the simple fill style. To define a pattern, fill in the Style dialog box, select the Simple fill style, and then type the path to the images library in the Library address field. The images library address should contain the URL to the virtual directory containing the images or to the folder name with images in the application folder that has been defined by the administrator.

In the Picture field, all pictures for the provided libraries are visible. Select a picture that should be used as a pattern fill, and then click Apply to set the pattern fill for all objects of the selected feature class. Translucency for the pattern fill can be defined as well as for the simple fill style. When the pattern fill is defined, the color attribute is not applied.

A pattern fill can be applied only to layers from services such as Web Feature Service, WebMap Map Publisher Service, and Personal Storage Service.

Setting image as a point style:

For features with the point geometry type, you can define a simple point style and graphic style.

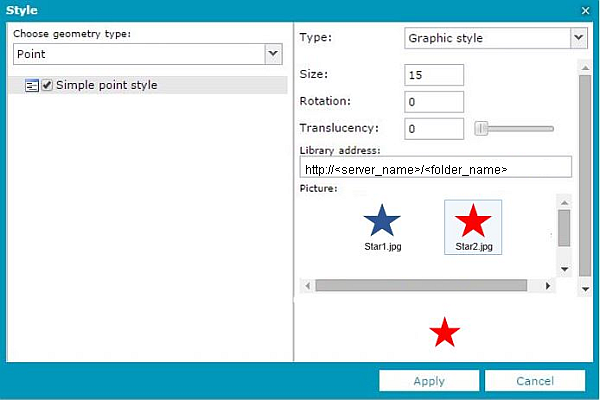

To define the graphic style for points:

1. Open the Style dialog box for the point geometry type layer.
2. Chose the geometry type, and select the Simple point style check box.
3. In the Style dialog box, select Graphic style from the Type drop-down list.
4. Type the path to the images library in the Library address field. The library address should contain the URL to the virtual directory that contains the images or the folder name with images in the application folder that has been defined by the administrator.
5. In the Picture field, all images for the provided libraries are visible. Select an image that should be used as a point style.
6. Use the Size field to adjust the size of the image.
7. Use the Rotation field to define the value in degrees for the image (symbol) rotation. The image is rotated in a counterclockwise direction. To rotate the symbol in a clockwise direction, use negative values. The symbol preview is visible in the Style dialog box.
8. Use the Translucency field or slide bar to set the translucency for the image.
9. Click Apply to use a defined graphic style for all objects of a selected feature class.
